Żmij, the binary-to-decimal conversion library I wrote about a few posts back, started as an optimized port of Schubfach. Later I switched its core to a different algorithm, defined in yy_double.c from yyjson by ibireme. It has no paper, no name beyond the file it lives in (I'll refer to it as yy), and almost no public profile outside the JSON performance crowd. It also happens to be one of the fastest dtoa implementations.

This post is a tour of yy through a small visualization, with a close look at one boundary case.

Where yy fits in

yy is in the Schubfach family. The shared idea, which I covered in an earlier post, is to find the shortest decimal $\sigma \cdot 10^{e_{10}}$ that round-trips back to a binary float $v$ by intersecting $v$'s rounding interval with decimal grids of various spacings, and picking the coarsest grid that still has a tick in the interval.

yy's trick is doing this very cheaply. The whole algorithm runs on fixed-width integer arithmetic and uses only one multiplication by a precomputed power of 10, where classic Schubfach needs two or three.

Four candidates

For each binary float $v = c \cdot 2^{e_2}$, yy picks a decimal exponent $e_{10}$ via a fixed-point approximation of $\log_{10} 2$, then re-expresses $v$ at the decimal scale as

$$ \bar v \approx v \cdot 10^{-e_{10}} $$

using a precomputed power-of-10 table $p_{10}$, a fixed-point value with $p_{10} \cdot 2^{e_p} \approx 10^{-e_{10}}$ for some binary exponent $e_p$. $\bar v$ then sits between four candidate decimal values:

• $d_1 = \lfloor \bar v \rfloor$ and $u_1 = d_1 + 1$, the integers immediately below and above $\bar v$.
• $d_0 = 10 \cdot \lfloor \bar v / 10 \rfloor$ and $u_0 = d_0 + 10$, the multiples of 10 below and above.

Outputting $d_0$ or $u_0$ gives a decimal one digit shorter than $d_1$ or $u_1$, because the trailing zero folds into the exponent.

Like classic Schubfach, yy prefers $d_0$ or $u_0$ when they round-trip and falls back to $d_1$ or $u_1$ otherwise. Three predicates do the work, evaluated against $\bar v$ and a half-ulp band $\delta$ around it. The first checks whether $\bar v - \delta$ reaches $d_0$:

$$ \delta \ge \bar v_{10} + \varepsilon_c $$

with $\bar v_{10} = \bar v \bmod 10$. The second checks whether $\bar v + \delta$ reaches $u_0$:

$$ \bar v_{10} + \delta \ge 10 + \eta_c $$

The third decides between the longer candidates $d_1$ and $u_1$ by checking whether $\bar v$ is past the midpoint:

$$ \bar v \bmod 1 \ge \tfrac12 + \varepsilon_u $$

The biases $\varepsilon_c$, $\eta_c = 2\varepsilon_c - 1$, $\varepsilon_u$ are small parity adjustments ($0$ or $\pm 1$) that implement round-half-to-even at exact ties. The first predicate that fires picks the candidate; if none does, the answer is $d_1$.

The $\varepsilon$ and $\eta$ terms are my bookkeeping, not yy's: they let me write the three predicates as simple, uniform formulas. The code doesn't adjust the thresholds at all. It runs the plain comparison and, only when it lands exactly on a tie, branches off and rounds to even by testing a low bit of the significand.

This is where the one-multiplication claim from earlier comes in: $\delta$ doesn't need its own multiplication. The half-ulp of $v$ is $\tfrac12 \cdot \mathrm{ulp}(v) = 2^{e_2 - 1}$, which in $\bar v$'s scale gives

$$ \begin{aligned} \delta &= 2^{e_2 - 1} \cdot p_{10} \cdot 2^{e_p} \ &= p_{10} \cdot 2^{e_2 + e_p - 1} \end{aligned} $$

so $\delta$ is just $p_{10}$ shifted by an integer (no rounding, no second multiplication). The bounds of the rounding interval are then $\bar v \pm \delta$ via add and subtract. Schubfach instead multiplies $v$, $v_l$, and $v_r$ by $p_{10}$ separately, which is two extra 192-bit multiplications.

The actual algorithm is a bit more involved than this, with extra paths for irregular intervals, subnormals, and the digit-emission loop. The sketch above is the core idea the rest hangs off of, and all you need to follow the visualization.

A step-by-step at E4M3 scale

E4M3 is an 8-bit floating-point format (1 sign bit, 4 exponent bits, 3 significand bits, bias 7) used for low-precision AI inference on recent GPUs. With only 256 encodings it fits on one page, which makes it a good target for visualizing things you'd otherwise have to take on faith at f64 scale. I went into more detail on the format in the previous post.

The walk-through is one HTML page, e4m3-yy.html; open it in a new tab.

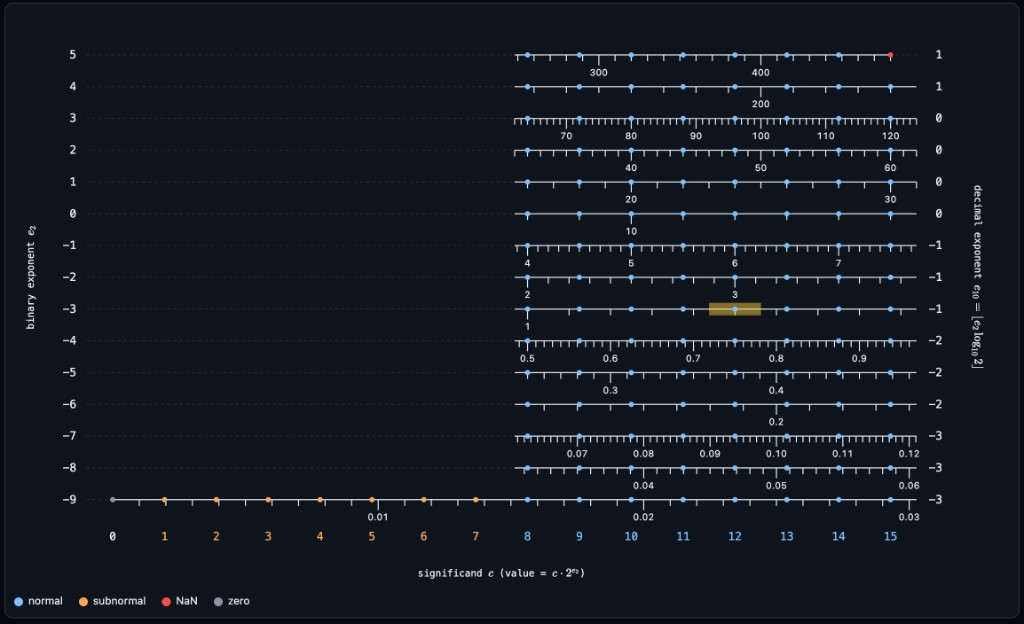

The page walks a value through yy's pipeline top to bottom. The main grid at the top plots every E4M3 value, with the rounding interval of the selected value highlighted:

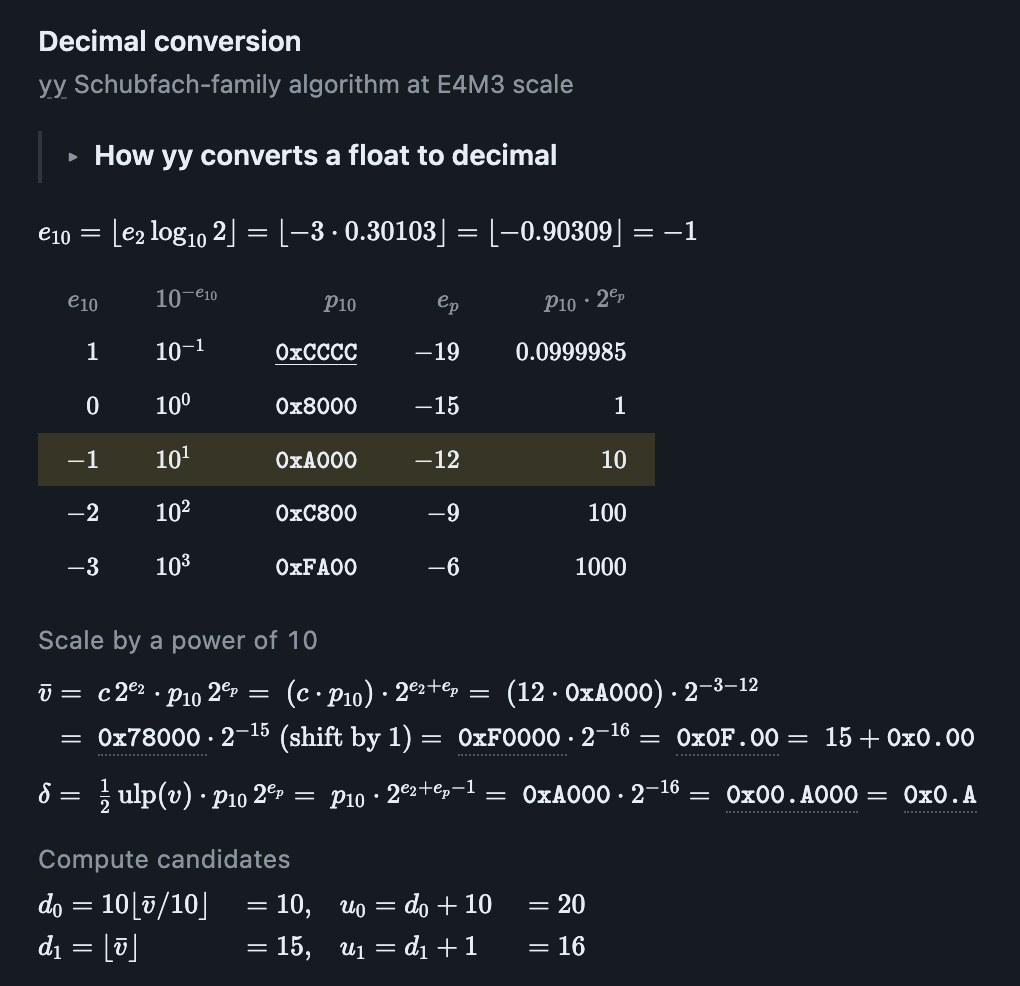

The middle panel is yy itself, step by step: $e_{10}$, the $p_{10}$ table with the active row highlighted, the scaling chain $\bar v = c \cdot 2^{e_2} \cdot p_{10} \cdot 2^{e_p}$, and the four candidates derived from $\bar v$:

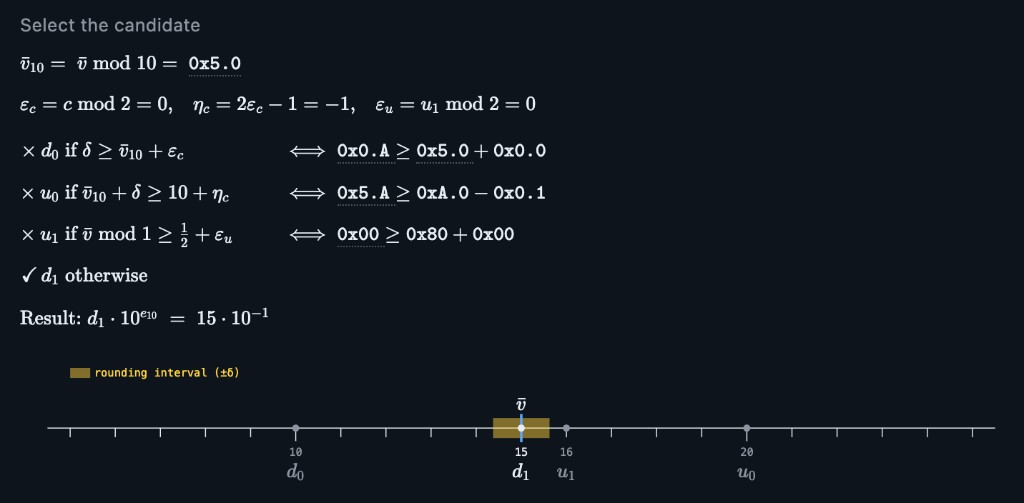

The bottom of that panel is the predicate table. Each row shows ✓ when the predicate fires, ✗ when it evaluates to false, and is greyed out when an earlier row already fired, alongside the actual comparison at 8-bit working-word precision. Below it, a small diagram puts the four candidates on a number line with $\bar v$ in the middle and a band of width $\pm \delta$:

Hover any underlined hex literal for the exact infinite-precision tail; hover a ? over a comparison for a note on why that cell is on a tipping point.

A boundary case that looks like a bug

Set the encoding to 116 in the explorer, or work out $v = 12 \cdot 2^{4} = 192$ by hand. The bits are 0 1110 100, so $c = 12$, $e_2 = 4$, and yy picks $e_{10} = \lfloor 4 \log_{10} 2 \rfloor = 1$, so $\bar v = 192 \cdot 10^{-1} = 19.2$ and the fine-grid fallback is $d_1 = \lfloor \bar v \rfloor = 19$, printed as 19e1. The shorter grid is multiples of $10^{2} = 100$, with $d_0 = 100$ and $u_0 = 200$. If $v$'s rounding interval reaches $u_0 = 200$, yy can emit the shorter 2e2 instead of the longer 19e1.

The decision comes down to the second predicate, $\bar v_{10} + \delta \ge 10$. yy evaluates it in a Q4.4 fixed-point working word (4 integer bits, 4 fractional bits, packed in 8 bits), and the left-hand side comes out to 0x9.F ($= 9.9375$), one LSB short of $10$. The predicate is false, so yy emits 19e1, a digit longer than it needs to be.

That looks wrong, and the reason it isn't comes down to one term. The comparison yy actually runs is

$$ \bar v_{10} + \delta \ge 10 + \eta_c $$

with $\eta_c = -1$ LSB here. Lowering the threshold by a unit in the last place looks like an off-by-one, but it is correcting for one.

In exact arithmetic the interval reaches $u_0$ exactly:

$$ \begin{aligned} \bar v + \delta &= 192 \cdot 10^{-1} + \tfrac12 \cdot 2^{4} \cdot 10^{-1} \ &= 19.2 + 0.8 = 20.0, \end{aligned} $$

so $u_0 = 200 = 10 \cdot 10^{1}$ sits at the edge of the interval. yy has no exact arithmetic. Its $p_{10}$ table is stored wider than the Q4.4 working word, 16 bits at this scale, and the $10^{-1}$ row floors to 0xCCCC, dropping a 0.8 LSB tail, the largest truncation any row carries. Multiplying by that rounded-down $p_{10}$ and packing the product back into Q4.4 is what turns a true 10.0 into 0x9.F, and $\eta_c$ subtracts the same LSB from the threshold to match:

$$ \bar v_{10} + \delta \ge 10 + \eta_c \iff \mathtt{0x9.F} \ge \mathtt{0xA.0 - 0x0.1} $$

Both sides are 0x9.F. The predicate ties, fires, and yy emits 2e2.

The visualization flags this cell with a ? because it's bias-sensitive: flip $\eta_c$ from $-1$ back to $0$ and the verdict flips, and yy emits 19e1. Both decimals round-trip: 200 parses to the halfway point between $192$ and $208$, and round-half-to-even picks $192$ because $c = 12$ is even.

Try it

The explorer is a single HTML file with no build step (source). Click through the encodings to see where $p_{10}$ truncation and round-half-to-even actually change yy's output.

Algorithms that live in JSON libraries don't get the citation count of the ones that ship with papers. yy is worth knowing about anyway.

Fun fact

The smallest normal double, $2^{-1022}$, is regular: its predecessor sits exactly one ULP below. Schubfach-family algorithms (yy, Dragonbox, Żmij) all flag "irregular" with sig_bin == 1ULL << 52, which fires on every power of two including this one. Harmless, but as far as I know nobody special-cases it.
